"T100 Series" TENNISMATIC Ball Machines

Australian Made and Owned Tennis Ball Machines





LIMITED STOCK

2 YEARS WARRANTY

(conditions apply)

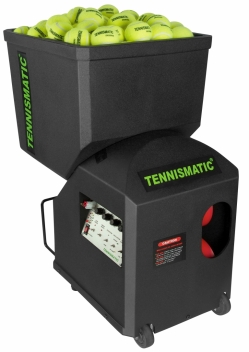

The TENNISMATIC ball machine is a portable, compact, lightweight machine.  It is user friendly, easy to handle, transport and store.  It  has up to 5 Horizontal Oscillation Positions, 4 Vertical Oscillation Positions (Drop shot, Short, Mid & Long, with automatic speed adjustment)  and a 19 function wireless remote control.



The TENNISMATIC ball machine incorporates a unique ball hopper design to clear the sand and debris from the balls inside the hopper before they reach the propulsion wheels.  Simply remove the ball hopper and tilt it to empty the sand at the end of play.The ball hopper also has the capacity of holding 300 balls.



The TENNISMATIC ball machine is designed using the latest Micro-computer technology and sophisticated software allowing the features to be controlled remotely.



BALL DE-JAMMER - Introducing  the NEW and very  UNIQUE  Tennismatic Ball  De-Jammer .   This innovative design is the world first in the tennis ball machines.



Using the latest micro computer technology and smart software, the Tennismatic  Ball  De-Jammer constantly controls and monitors the feeding carousel conditions. When a ball jam occurs the  Ball De-Jammer will un-jam the ball and allow smooth and continuous operation  while protecting the Feeding Gear Box and Motor.

Starting from January 2012 all our TENNISMATIC  T100 Series  tennis ball machines will be equipped with this unique  Tennismatic De-Jammer module.



We can also install the de-jammer module into previously sold T100 series tennis ball machines that are not equipped with it.  Please contact our technical staff at TENNISMATIC for further information.







            Playing position                                                19 Function Remote

                                                                                   Fits in the palm of your hand









                    Storage Position                         Transport Position





Click here for photos







Control Panels







          T101-S & T101                          T102                               T103 & T104









Remote Controls





T101-S

6 Function Remote



   T101

    14 Function Remote

      T102,103,104

         19 Function Remote





T101-S

6 Function Wireless

Remote Control





  • ON /STANDBY
  • FEED ON/OFF
  • SWEEP ON / OFF



T101

14 Function Wireless

Remote Control





  • ON / STANDBY
  • FEED ON /OFF
  • SWEEP ON / OFF
  • SPEED FASTER /SLOWER
  • SPIN INCREASE/DECREASE
  • ELEVATION UP / DOWN
  • SWEEP ON / OFF
  • SINGLE SHOT (ONE BALL     ONLY ON COMMAND)

T102 , T103, T104

19 Function Wireless Remote Control





  • ON / STANDBY
  • FEED ON /OFF
  • SWEEP ON / OFF
  • SPEED FASTER /SLOWER
  • SPIN INCREASE/DECREASE
  • ELEVATION UP / DOWN
  • SWEEP ON / OFF
  • SINGLE SHOT (ONE BALL     ONLY ON COMMAND)
  • PROGRAMMABLE RANDOM
  • PROGRAMMABLE

        SEQUENTIAL

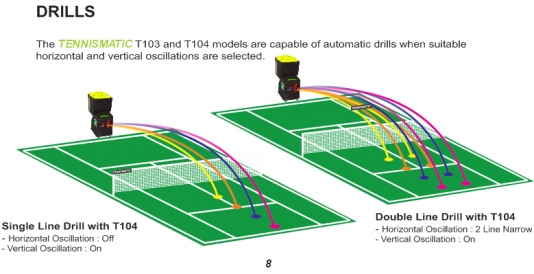

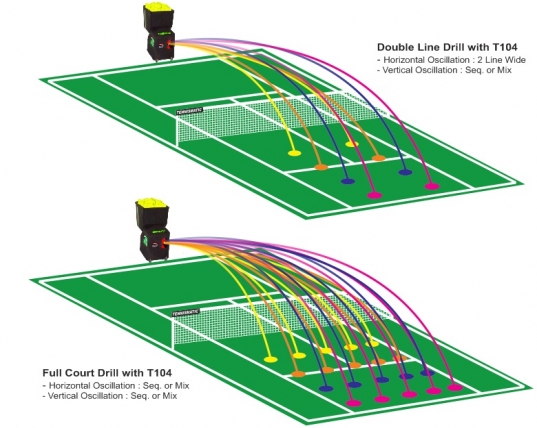

  • 2 LINE DRILL -
  • NARROW / WIDE

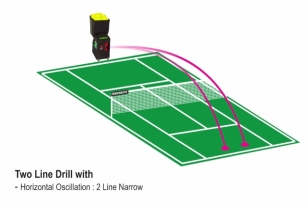

    2 LINE HORIZONTAL DRILLS



     You can adjust the depth of the Horizontal 2 Line Drill by adjusting the speed and elevation.













T100 Series Comparison Chart

Model

T01-S

T101

T102

T103

T104

Features











Speed

20-140km/h

20-140km/h

20-140km/h

20-140km/h

20-140km/h

Spin

Top/Back Spin

Top/Back Spin

Top/Back Spin

Top/Back Spin

Top/Back Spin

Ball Feed Interval

2-15 Seconds

2-15 Seconds

2-15 Seconds

2-15 Seconds

2-15 Seconds

Elevation

Electronic

Electronic

Electronic

Electronic

Electronic

Horizontal Oscillation











 # Random

Yes

Yes

Yes

Yes

Yes

#Programmable

Sequence

No

No

Yes(5 Position)

Yes(5 Positions)

(combination of vertical & horizontal gives 15 court positions)

Yes(5 Positions)

(combination of vertical & horizontal gives 20 court positions)

#Programmable Mix

No

No

Yes(5 Position)

Yes(5 Positions)

Yes(5 Positions)

#Narrow 2-Line Drill

No

No

Yes

Yes

Yes

#Wide 2-Line Drill

No

No

Yes

Yes

Yes

Vertical Oscillation











#Programmable Sequence

No

No

No

Yes(3 positions)

 with automatic speed adjustment

(combination of vertical & horizontal gives 15 court positions)

Yes(4 positions)

with automatic speed adjustment (combination of vertical & horizontal gives 20 court positions)

#Programmable Mix

 No

No

No

Yes

Yes

Power Option

 DC, AC/DC

DC,AC,AC/DC

DC,AC,AC/DC

DC,AC,AC/DC

DC,AC,AC/DC

Ball Capacity

 300

300

300

300

300

Ball Hopper Sand Filter

 Yes

Yes

Yes

Yes

Yes

Ball Dejammer

Yes

Yes

Yes

Yes

Yes

Propulsion

Rotating Wheels

Rotating Wheels

 Rotating Wheels

 Rotating Wheels

 Rotating Wheels

Remote

 6 Functions

14 Functions

19 Functions

19 Functions

19 Functions

Playing Time on Battery

2-4 hours

2-4 hours

2-4 hours

2-4 hours

2-4 hours

Battery Level Monitor

 Yes

Yes

Yes

Yes

Yes

External Heavy Duty Battery

 Optional

Optional

Optional

Optional

Optional





Battery Charger Incl.

Yes (Automatic Battery Charger) 4-5 hours  Charging Time

Yes (Automatic Battery Charger) 4-5 hours  Charging Time

Yes (Automatic Battery Charger) 4-5 hours  Charging Time

Yes (Automatic Battery Charger) 4-5 hours  Charging Time

Yes (Automatic Battery Charger) 4-5 hours  Charging Time

External Heavy Duty Battery Smart Charger

Optional

Optional

Optional

Optional

Optional

Weight Kg



 23

 23

 23

23

23



Older machines , the speed can go up to 140km/ph

With the latest machines the speed is approx. 120km/ph.  Machines with curve wheels will deliver the  balls in the court area more accurately.



DIMENSIONS CM:





PLAYING POSITION:      68 L x 36 W x 83 H

STORAGE POSITION:      52 L x 42 W x 65 H

WITHOUT THE HOPPER: 47 L X 36 W X 55 H



Packaging size= 1 carton , 59x 47 x 70cm







T100 Series Price List



T101 Models



T101S-DC

(Battery)

$1,818.17 Ex. GST

$1999.99 Incl.GST



T101S-AC/DC

$2012 Ex. GST

$2213.20 Incl. GST





T101-DC

(Battery)

$1902.71 Ex. GST

$2092.98 Incl. GST

OBSOLETE



T101-AC

(Mains Power)

$1999.00 Ex GST

$2198.89 Incl. GST

OBSOLETE



T101-AC/DC

(Dual Power)

$2012.00 Ex. GST

$2213.20  Incl. GST

OBSOLETE





T102 Models



T102-DC

(Battery)

$2217.82 Ex. GST

$2439.60  Incl. GST



T102-AC

(Mains Power)

$2352.00  Ex. GST

$2587.20 Incl. GST





T102-AC/DC

(Dual Power)

$2432.00 Ex. GST

$2675.20 Incl.GST

T103 Models



T103-DC

(Battery)

$2544.54 Ex. GST

$2799.00 Incl. GST





T103-AC

(Mains Power)

$2664.80 Ex. GST

$2931.28 Incl. GST



T103-AC/DC

(Dual Power)

$2744.80 Ex. GST

$3019.28 Incl.GST

T104 Models



T104-DC

(Battery)

$2799.40 Ex. GST

$3079.34 Incl. GST



T104-AC

(Mains Power)

$2940.00 Ex. GST

$3234.00 Incl. GST



T104-AC/DC

(Dual Power)

$3087.00 Ex. GST

$3395.70  Incl.GST



Ex.GST Prices apply to customers outside Australia.

Incl.GST Prices apply to Australian Customers

The Prices listed above are SALE PRICES

(DC= Battery),  (AC = Mains),   (AC/DC= Battery & Mains)
